Rupes BigFoot MarkV (Mark 5) 5" Random Orbital Polisher



















Rupes BigFoot MarkV (Mark 5) 5" Random Orbital Polisher

Rupes BigFoot MarkV (Mark 5) 5" Random Orbital Polisher

Rupes BigFoot MarkV (Mark 5) 5" Random Orbital Polisher

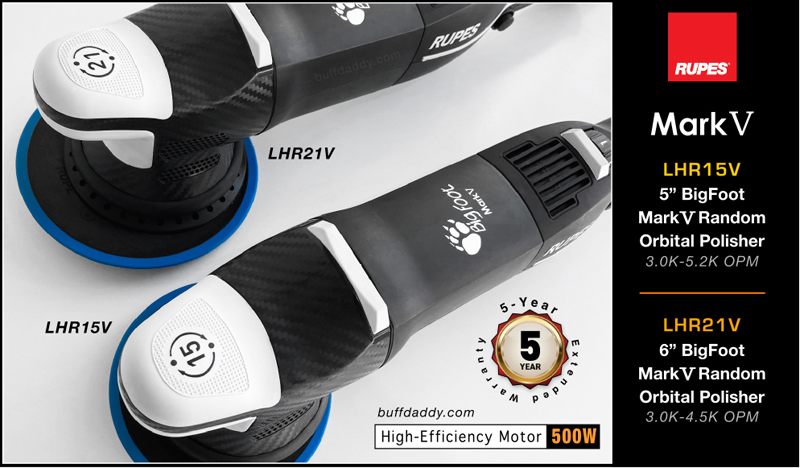

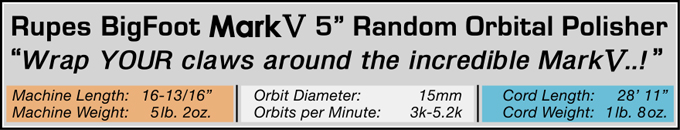

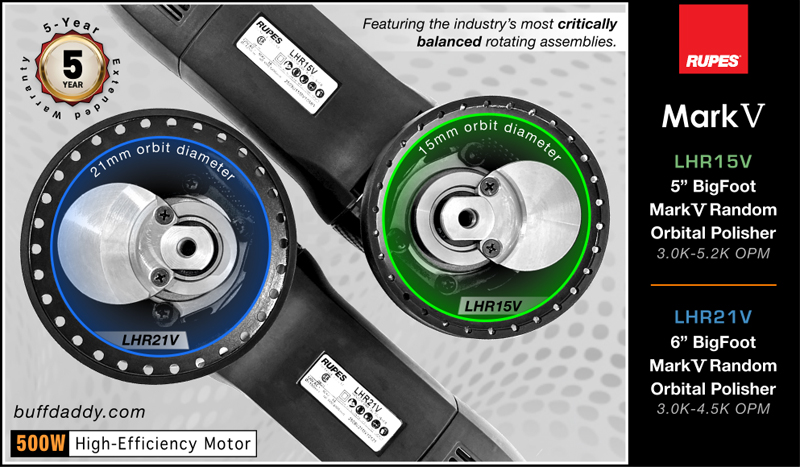

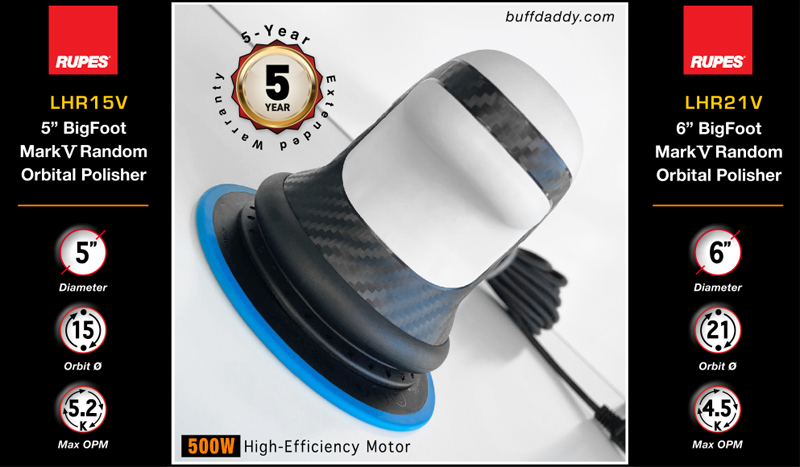

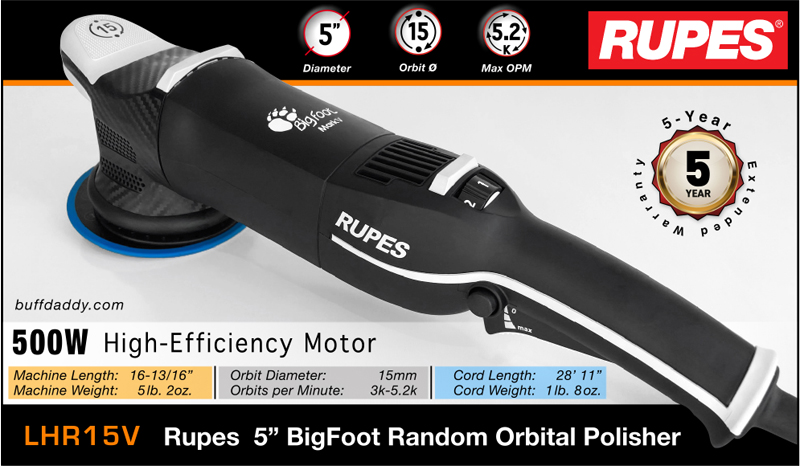

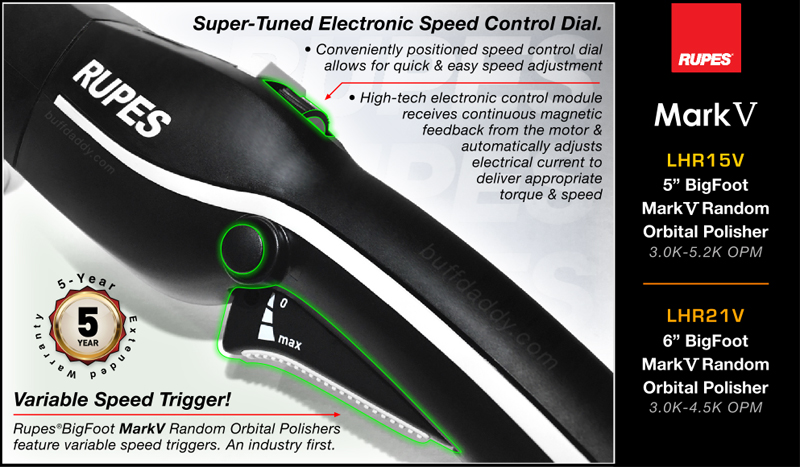

LHR15V | LHR21V<br/><br/>Rupes BigFoot MARK 5 Random Orbital Polishers are available in 5" and 6" versions. Each machine has been individually tuned to deliver top-notch performance, & unrivaled driving comfort.<br/><br/>The 5" and 6" MarkV machines feature their own unique rotating assemblies (hub & counterweight), and have been specifically performance-tuned via their electronic control modules.<br/><br/>Specifications for 5" Polisher-<br/>Part number: LHR15V (MARK 5)<br/>Backing plate diameter: 5"/125mm<br/>Machine Length: 16-13/16”<br/>Weight: 5lb. 2oz. (not inc. cord)<br/>Cord length: 28' 11"<br/>Cord weight: 1lb. 8oz.<br/>Power input: 120V/60Hz<br/>Power consumption/rating: 500 watts<br/>Fixed speed: 3k-5.2k OPM<br/>Orbit diameter: 15mm<br/><br/>Specifications for 6" Polisher-<br/>Part number: LHR21V (MARK 5)<br/>Backing plate diameter: 6"/150mm<br/>Machine Length: 16-13/16”<br/>Weight: 5lb. 5oz. (not inc. cord)<br/>Cord length: 28' 11"<br/>Cord weight: 1lb. 8oz.<br/>Power input: 120V/60Hz<br/>Power consumption/rating: 500 watts<br/>Fixed speed: 3k-4.5k OPM<br/>Orbit diameter: 21mm<br/><br/>LHR15V | LHR21V<br/><br/>Rupes BigFoot Random Orbital Polishers are world renowned for their wonderfully balanced rotating assemblies. All other aspects of a machine being equal... the larger the stroke, the more CRITICAL the balancing of the rotating assembly BECOMES.<br/><br/>Rupes LHR15V and LHR21V MARK 5 Random Orbital Polishers are unmatched in terms of their comfort & controllability during use.<br/><br/>Specifications for 5" Polisher-<br/>Part number: LHR15V (MARK 5)<br/>Backing plate diameter: 5"/125mm<br/>Machine Length: 16-13/16”<br/>Weight: 5lb. 2oz. (not inc. cord)<br/>Cord length: 28' 11"<br/>Cord weight: 1lb. 8oz.<br/>Power input: 120V/60Hz<br/>Power consumption/rating: 500 watts<br/>Fixed speed: 3.k-5.2k OPM<br/>Orbit diameter: 15mm<br/><br/>Specifications for 6" Polisher-<br/>Part number: LHR21V (MARK 5)<br/>Backing plate diameter: 6"/150mm<br/>Machine Length: 16-13/16”<br/>Weight: 5lb. 5oz. (not inc. cord)<br/>Cord length: 28' 11"<br/>Cord weight: 1lb. 8oz.<br/>Power input: 120V/60Hz<br/>Power consumption/rating: 500 watts<br/>Fixed speed: 3k-4.5k OPM<br/>Orbit diameter: 21mm<br/><br/>LHR15V | LHR21V<br/><br/>Rupes BigFoot MarkV Random Orbital Polishers feature variable speed triggers! An industry first.<br/><br/>A conveniently positioned speed control dial allows for quick & easy speed adjustment.<br/><br/>A high-tech electronic control module receives continuous magnetic feedback from the motor, and automatically adjusts electrical current to deliver an appropriate quantity of torque & speed.<br/><br/>The LHR15V Mark Five 5” Random Orbital Polisher generates a 15mm orbit diameter. Its 500 watt, highly-efficient motor delivers a fixed speed range of 3,000-5,200 oscillations per minute.<br/><br/>LHR15V | LHR21V<br/><br/>A svelte & lightweight, perfectly-shaped machine body minimizes strain on bones & muscles during extended polishing sessions.<br/><br/>The ergonomic design is a pleasure to operate. Speed controls are intuitively positioned, while the gripping surfaces (handle & head cap) are shaped for comfort & control.<br/><br/>Specifications for 6" Polisher-<br/>Part number: LHR15V (MARK 5)<br/>Backing plate diameter: 5"/125mm<br/>Machine Length: 16-13/16”<br/>Weight: 5lb. 2oz. (not inc. cord)<br/>Cord length: 28' 11"<br/>Cord weight: 1lb. 8oz.<br/>Power input: 120V/60Hz<br/>Power consumption/rating: 500 watts<br/>Fixed speed: 3k-5.2k OPM<br/>Orbit diameter: 15mm<br/><br/>LHR15V<br/><br/>Rupes 5" Microfiber Cutting Pads are available in (3) versions. The 9.MF130H 5" Blue Extreme-Cut Microfiber Pad features a very rigid blue foam center, which delivers maximum machine motion, and the highest rate of random rotation of the trio. The 9.MF130M 5" Yellow Fine Microfiber Pad is the "go-to" for everyday polishing tasks. This pad is incredibly versatile; it is fast-cutting action, but can achieve a tremendous finish. For an ultimate finishing of finicky paints, final-polish using a foam pad. The 9.MF130S 5" White Ultrafine Microfiber Pad features a soft foam interlayer, and an abundance of plush microfiber strings. This pad delivers maximum comfort during use, and when used with the right procedure, it excels at minimizing or eliminating water spot & bird-dropping etch marks.<br/><br/>Specifications for 5" Polisher-<br/>Part number: LHR15V (MARK 5)<br/>Backing plate diameter: 5"/125mm<br/>Machine Length: 16-13/16”<br/>Weight: 5lb. 2oz. (not inc. cord)<br/>Cord length: 28' 11"<br/>Cord weight: 1lb. 8oz.<br/>Power input: 120V/60Hz<br/>Power consumption/rating: 500 watts<br/>Fixed speed: 3k-5.2k OPM<br/>Orbit diameter: 15mm<br/><br/>Specifications for 6" Polisher-<br/>Part number: LHR21V (MARK 5)<br/>Backing plate diameter: 6"/150mm<br/>Machine Length: 16-13/16”<br/>Weight: 5lb. 5oz. (not inc. cord)<br/>Cord length: 28' 11"<br/>Cord weight: 1lb. 8oz.<br/>Power input: 120V/60Hz<br/>Power consumption/rating: 500 watts<br/>Fixed speed: 3k-4.5k OPM<br/>Orbit diameter: 21mm<br/><br/>LHR15V<br/><br/>There's nothing worse than momentarily setting your machine down, and having it slide, roll, or FALL to the ground. The Rupes BigFoot LHR15V Mark 5 Polisher features two rubber standoffs, or BOLSTERS. The rubber bolster material is durable & grippy, and should help to keep your cherished machine safe for a very long time.<br/><br/>Specifications-<br/>Part number: LHR15V (MARK 5)<br/>Machine Length: 16-13/16”<br/>Weight: 5lb. 2oz. (not inc. cord)<br/>Cord length: 28' 11"<br/>Cord weight: 1lb. 8oz.<br/>Power input: 120V/60Hz<br/>Power consumption/rating: 500 watts<br/>Fixed speed: 3.k-5.2k OPM<br/>Orbit diameter: 15mm<br/><br/>LHR15V<br/><br/>Rupes 5" Microfiber Cutting Pads are available in (3) versions. The 9.MF130H 5" Blue Extreme-Cut Microfiber Pad features a very rigid blue foam center, which delivers maximum machine motion, and the potential to create the highest rate of random rotation of the trio. The 9.MF130M 5" Yellow Fine Microfiber Pad is the "go-to" for everyday polishing tasks. This pad is incredibly versatile; it features fast-cutting action, but can also achieve a tremendous finish. For an ultimate finishing of finicky paints, final-polish using a foam pad. The 9.MF130S 5" White Ultrafine Microfiber Pad features a soft foam interlayer, and an abundance of plush microfiber strings. This pad delivers maximum comfort during use, and when used with the right procedure, it excels at minimizing or eliminating water spot & bird-dropping etch marks.<br/><br/>Specifications for 5" Polisher-<br/>Part number: LHR15V (MARK 5)<br/>Backing plate diameter: 5"/125mm<br/>Machine Length: 16-13/16”<br/>Weight: 5lb. 2oz. (not inc. cord)<br/>Cord length: 28' 11"<br/>Cord weight: 1lb. 8oz.<br/>Power input: 120V/60Hz<br/>Power consumption/rating: 500 watts<br/>Fixed speed: 3k-5.2k OPM<br/>Orbit diameter: 15mm<br/><br/>Specifications for 6" Polisher-<br/>Part number: LHR21V (MARK 5)<br/>Backing plate diameter: 6"/150mm<br/>Machine Length: 16-13/16”<br/>Weight: 5lb. 5oz. (not inc. cord)<br/>Cord length: 28' 11"<br/>Cord weight: 1lb. 8oz.<br/>Power input: 120V/60Hz<br/>Power consumption/rating: 500 watts<br/>Fixed speed: 3k-4.5k OPM<br/>Orbit diameter: 21mm<br/><br/>LHR15V<br/><br/>The white, super grippy non-slip upper and lower rubber areas of the Mark 5's head cap are a TREAT! The white stripes along the side of the LHR15V's handle are made of the same grippy material.<br/><br/>As is obvious by inspecting its ergonomic appearance... every aspect of the machine's chassis has been shaped for comfort, enabling the user to easily control the machine.<br/><br/>Specifications for 5" Polisher-<br/>Part number: LHR15V (MARK 5)<br/>Backing plate diameter: 5"/125mm<br/>Machine Length: 16-13/16”<br/>Weight: 5lb. 2oz. (not inc. cord)<br/>Cord length: 28' 11"<br/>Cord weight: 1lb. 8oz.<br/>Power input: 120V/60Hz<br/>Power consumption/rating: 500 watts<br/>Fixed speed: 3k-5.2k OPM<br/>Orbit diameter: 15mm<br/><br/>The Rupes 9.BF150H 5" BLUE Coarse Foam Pad is designated as being a HARD CUTTING pad. Although this pad INITIALLY feels rigid, it becomes very pliable as it warms & saturates with buffing liquid.<br/><br/>This buffing pad features a large pore, thick-wall design. The "open cell" structure of the 9.BF180H keeps it clog-free longer than traditional foam cutting pads. However, it may sling or splatter if too much compound is used. To control sling, do not intentionally saturate or use an excess quantity of compound with this pad. This pad does not require (nor benefit from) priming of the pad.<br/><br/>The 9.BF180H is a SUPER PAD for compounding duties, as it is common to see diminutive-diameter pads saturate quickly with buffing liquid and paint residue (and this pad WILL NOT remain loaded for an extended period of time).<br/><br/>Actual dimensions:<br/>(Velcro: 5-1/8" | 130mm) • (Pad Face: 5-7/8" | 149mm)<br/><br/>The Rupes 9.DA150B 5" TEAL Intermediate Foam Pad is designated as being an all-purpose pad. Its performance characteristics are in line with a typical foam cutting pad... but it is more than capable of leaving a very nice finish. As such, only minimal follow-up polishing is required to achieve a high-caliber finish.<br/><br/>Actual dimensions:<br/>(Velcro: 5-1/8" | 130mm) • (Pad Face: 5-7/8" | 149mm)<br/><br/>The Rupes 9.BF150M 5" YELLOW Fine Foam Pad is designated as being a MEDIUM or FINE POLISHING pad. For general polishing duties, this buffing pad is TOUGH to BEAT. The 9.BF180M is UNEQUALED in versatility of use, and can be paired with heavy-cut compounds OR finesse-grade polishes.<br/><br/>In larger diameters, Rupes YELLOW foam buffing pads are WORLD RENOWNED.<br/>This pad should be a staple in your pad arsenal.<br/><br/>Actual dimensions:<br/>(Velcro: 5-1/8" | 130mm) • (Pad Face: 5-7/8" | 149mm)<br/><br/>The Rupes 9.BF150S 5" WHITE Ultra-Fine Foam Pad is designated as being a SOFT or ULTRA-FINE FINISHING pad. This buffing pad is VERY soft and pliable, making it the perfect choice for use on difficult-to-finish paint types, or for use on super-contoured panel shapes.<br/><br/>Potentially a bit grippy (compared to the other Rupes Foam Pads), this can be counteracted by decreasing pressure, or adding a bit of machine speed or arm speed (to assist in decrease pad drag). It sometimes helps to use in conjunction with micro-spritzes of water.<br/><br/>Actual dimensions:<br/>(Velcro: 5-1/8" | 130mm) • (Pad Face: 5-7/8" | 149mm)<br/><br/>The Rupes 9.BW150H 5" Blue Coarse Wool Polishing Pad features a diverse string length & density combination designed to deliver fast cutting action, without the heavy scouring typically associated with heavy-cut wool pads.<br/><br/>Available in 1-inch, 2-inch, 3-inch, 5-inch, and 6-inch diameters. BIGFOOT.<br/><br/>Actual dimensions:<br/>(Velcro: 5-1/8" | 130mm) • (Pad Face: 5-3/4" | 146mm) • (String Length: 3/8" | 9.5mm)<br/><br/>The Rupes 9.BW150M 5" Yellow Medium Wool Polishing Pad features highly refined, non-twisted wool strings. The term "non-twisted" refers to the fact that the wool strings are NOT braided together to form a thicker, rope-like string.<br/><br/>This pad delivers a smooth feel during polishing. The plushness and length of its wool strings enable the 9.BW150M to work efficiently on super-contoured areas.<br/><br/>Available in 1-inch, 2-inch, 3-inch, 5-inch, and 6-inch diameters. BIGFOOT.<br/><br/>Actual dimensions:<br/>(Velcro: 5-1/8" | 130mm) • (Pad Face: 5-3/4" | 146mm) • (String Length: 1/2" | 12.7mm)<br/><br/><br/><br/>9.MF130H<br/><br/>The Rupes 5" Extreme-Cut Microfiber Pad features a straight-cut edge, allowing it to deliver consistent cut across the entire diameter of the pad.<br/><br/><br/><br/>9.MF130M<br/><br/>The Rupes 5" Fine Microfiber Pad features a straight-cut edge, allowing it to deliver consistent cut across the entire diameter of the pad.<br/><br/><br/><br/>9.MF130S<br/><br/>The Rupes 5" Ultra-Fine Microfiber Pad features a straight-cut edge, allowing it to deliver consistent cut across the entire diameter of the pad.<br/><br/>Rupes Buffing Liquids. All three liquids are free of heavy oils & fillers, making them ideal for use in preparation of surfaces that will be protected via cross-linking sealants, polymers, and coatings.<br/><br/>9.DACOARSE250 | 9.DACOARSE<br/>D-A Coarse is designed to deliver rapid defect removal. Although D-A Coarse is an extremely capable cutter, state of the art technology and untold hours of testing and adjusting this formula enable D-A Coarse to oftentimes deliver a visually perfect finish.<br/><br/>9.DAPOLISH250 | 9.DAPOLISH<br/>D-A Polish is likely to be the go-to liquid for the majority of polishing situations. It’s been designed, tested, and tweaked to deliver everything professionals & enthusiasts desire: the potential to cut rapidly, yet finish beautifully; short or long buffing cycles; ease of use; fail-safe performance.<br/><br/>9.PURE250 | 9.PURE<br/>UNO Pure is likely to become the world standard for finessing swirls, haziness, tick marks, and other imperfections that are often created when attempting to perfect finicky paint types.<br/>The Rupes Embroidered BigFoot Big Bag Tool Case is a BEHEMOTH of a bag! It's built like a tank,and can carry a surprising amount of weight. "One of my bags weighed in at 64 pounds!" KB.<br/><br/>Specifications-<br/>Part number: 9.Z917/BF<br/>Dimensions: 23"L x 15"T x 13"W<br/>Weight: 10 pounds<br/><br/>*Note: When in upright position, carry handle adds 3-1/4" to height.<br/><br/>Features:<br/>Heavy Duty Waterproof Material<br/>Foldaway Metal Carry Handle<br/>Detachable Shoulder Strap<br/><br/>Internal storage section features:<br/>(1) Vast Open Space<br/>(4) Internal Wingflap Pockets<br/>(8) Bottle Storage Pockets<br/>(2) Endcap/Side Pockets<br/>(2) Full-Width Slotted Pockets<br/>(2) Machine Hold Down Straps (Velcro)<br/><br/>The Rupes Embroidered BigFoot Big Bag Tool Case is internally IMMENSE. "For off-site polishing tasks, I've been known to utilize as many as FOUR of these beauties: Bag #1 is loaded with all of my electric polishers, spare parts & plates. Bag #2 is used to store all of my pneumatic tools, air hoses, couplers, and fittings. Bag #3 is used to store extension cords, portable lighting, and hand tools, etc. Bag #4 is used to store buffing pads and microfiber towels." KB<br/><br/>Specifications-<br/>Part number: 9.Z917/BF<br/>Dimensions: 23"L x 15"T x 13"W<br/>Weight: 10 pounds<br/><br/>*Note: When in upright position, carry handle adds 3-1/4" to height.<br/><br/>Features:<br/>Heavy Duty Waterproof Material<br/>Foldaway Metal Carry Handle<br/>Detachable Shoulder Strap<br/><br/>Internal storage section features:<br/>(1) Vast Open Space<br/>(4) Internal Wingflap Pockets<br/>(8) Bottle Storage Pockets<br/>(2) Endcap/Side Pockets<br/>(2) Full-Width Slotted Pockets<br/>(2) Machine Hold Down Straps (Velcro)<br/><br/>
Click to enlarge image(s)




Rupes BigFoot MarkV 6" Random Orbital Polisher.

Compared to its MarkIII predecessor, the Rupes BigFoot MarkV features an impressive list of improvements:

• An all-new gear system that reduces noise & vibration

• A decrease in height & weight, which improves comfort and controllability

• A substanial decrease in noise level to 73dB (a 47% decrease in perceived sound  pressure level)

Please click the accompanying images for in-depth information regarding all aspects pertaining to this machine.

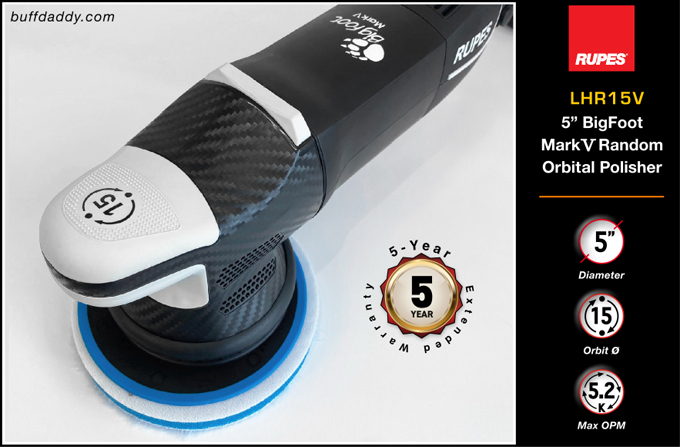

The LHR15V Mark 5 delivers:

• An orbit diameter of 15mm
• Super-fast cutting speed
• Fantastic finishing potential
• Smooth swooping motions that increase user comfort
• Increased rotation of the backing plate vs. other machines

Add a variety of Rupes Buffing Pads.   (save 30%)

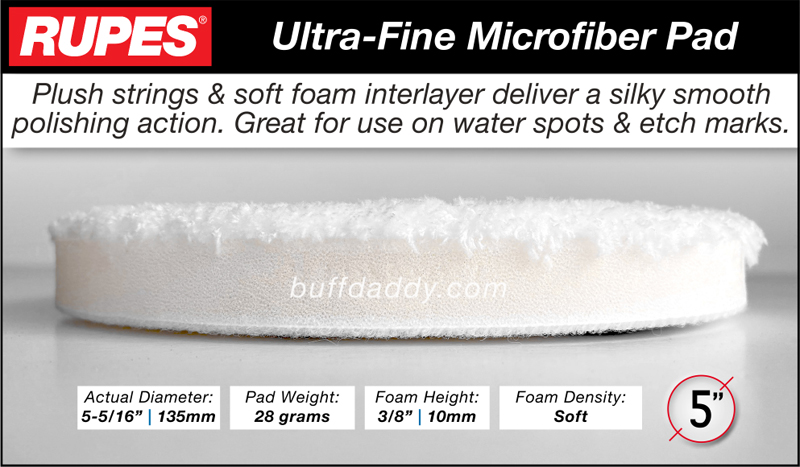

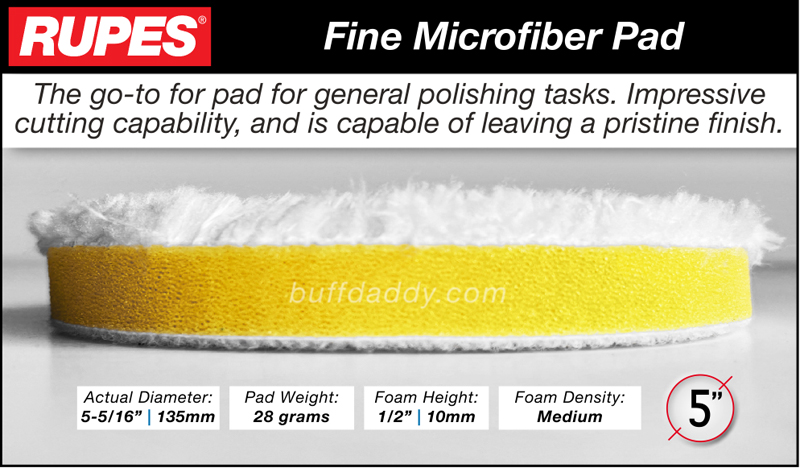

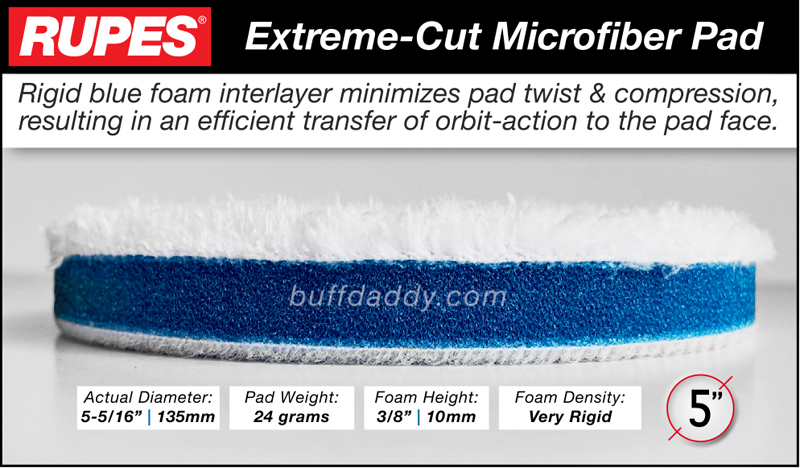

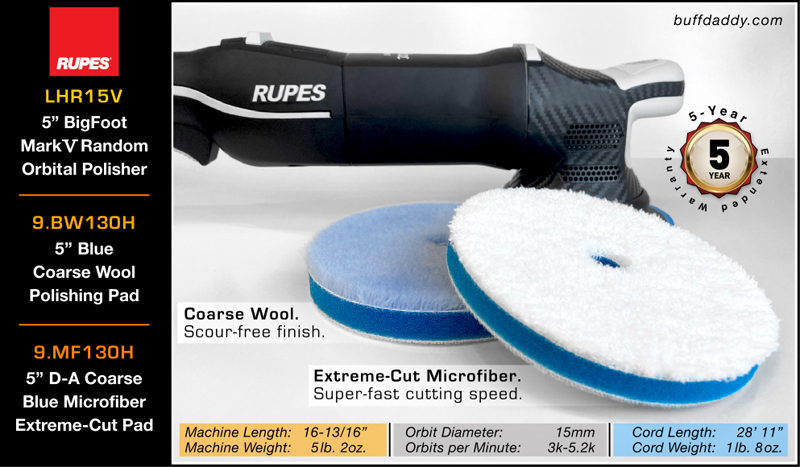

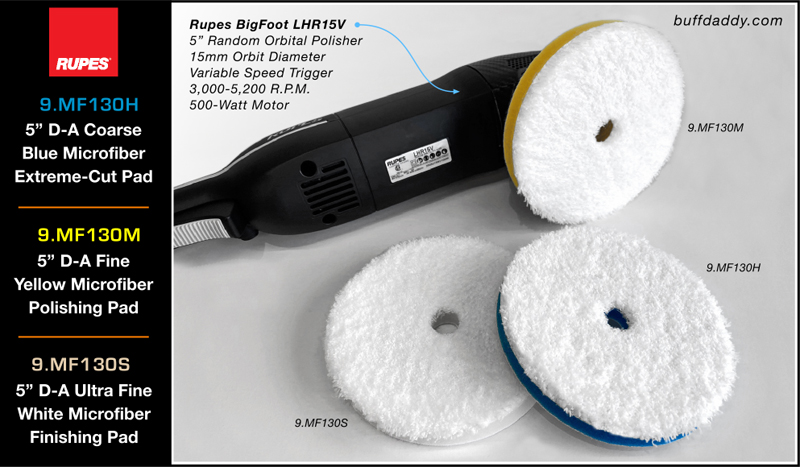

You'll be ready to tackle just about any polishing task if you've got a set of Rupes® Buffing Pads on hand. Rupes Foam Pads have been specifically designed for use with large stroke, random orbital polishers (4 versions are available). Rupes Wool Pads deliver for a smooth & controlled feel (2 versions are available). Rupes Microfiber Pads deliver maximum cutting speed, and accomplish certain tasks (such as surface leveling and etch-mark damage) that other pads cannot do as efficiently (3 versions are available).

Add Rupes Buffing Liquids.   (save 30%)
A trio of buffing liquids to choose from. All-new formulas.

Add a Carrying Case. (save 30%)
Never run out of room when transporting your polishing tools & accessories. The Rupes Embroidered Carrying Case is quality built, capable of handling an impressive amount of machines, pads, liquids, & accessories. BIG BAG Tool Case

Looking for a 6" version of this machine?
Rupes Mark 5 BigFoot LHR21V 6" Random Orbital Polisher.

Looking for an entry level version of this machine?
Rupes LEGACY BigFoot LHR15ES 5" Random Orbital Polisher.

Looking for a 3" companion to this machine?
Rupes LHR75E BigFoot 3" Random Orbital Polisher.

This machine carries an extended warranty: Simply register your MarkV polisher within 30 days of purchase, and you’ll receive an extended warranty that ensures your investment is protected for 5 full years. Specifics listed here.
