Prevost Air Hose


















Prevost Air Hose

Prevost Air Hose

Prevost Air Hose
Prevost Polyurethane Spiral Hoses are available in 13', 26', and 32' lengths (fully extended), making them perfect for use in a variety of locations. Install atop work benches, mount below tables, or drop from the ceiling (in lieu of a straight hose & reel). Install anywhere that requires a clutter-free environment.<br/><br/>Hose ends feature super durable non-slip rubber grips (3-5/16" length), and 1/4" Male NPT thread. Inlet threads are fixed, and do not rotate, or swivel. Outlet threads feature 360º rotation, designed to increase user comfort by minimizing hose kinking & twisting.<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 5/16" ID | Coil diameter: 2.05" | Straight length of hose on output side: 19" | Maximum air pressure: 116 PSI | Operating temperature: 5º-158ºF | Available hose lengths (fully extended): 13' (PUS 264) • 26' (PUS 268) • 32' (PUS 2610)<br/><br/>Prevost RED Polyurethane Spiral Hoses are available in 13' and 20' lengths (fully extended), making them perfect for use in a variety of locations. Install atop work benches, mount below tables, or drop from the ceiling (in lieu of a straight hose & reel). Install anywhere that requires a clutter-free environment.<br/><br/>Hose ends feature super durable non-slip rubber grips (3-5/16" length), and 1/4" Male NPT thread. Inlet threads are fixed, and do not rotate, or swivel. Outlet threads feature 360º rotation, designed to increase user comfort by minimizing hose kinking & twisting.<br/><br/>Shown outfitted with a Prevost Original One-Push Instant Disconnect Coupler (IRC 061201), Prevost PREVO S1 Compact Composite Blowgun with Composite Tip (IBG 06PRE),  Prevost PREVO S1 Compact Composite Blowgun with Metal Tip (IBG 06MTL), and Prevost Rubber Boot / Ear Clamp Cover & Coupling Protector (ECP S11720).<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 5/16" ID | Coil diameter: 2.05" | Straight length of hose on output side: 19" | Maximum air pressure: 116 PSI | Operating temperature: 5º-158ºF | Available hose lengths (fully extended): 13' (PUS 264R) • 20' (PUS 266R)<br/><br/>Prevost BLACK Polyurethane Spiral Hoses are available in 13' and 20' lengths (fully extended), making them perfect for use in a variety of locations. Install atop work benches, mount below tables, or drop from the ceiling (in lieu of a straight hose & reel). Install anywhere that requires a clutter-free environment.<br/><br/>Hose ends feature super durable non-slip rubber grips (3-5/16" length), and 1/4" Male NPT thread. Inlet threads are fixed, and do not rotate, or swivel. Outlet threads feature 360º rotation, designed to increase user comfort by minimizing hose kinking & twisting.<br/><br/>Shown outfitted with a Prevost Original One-Push Instant Disconnect Coupler (IRC 061201), Prevost PREVO S1 Compact Composite Blowgun with Composite Tip (IBG 06PRE),  Prevost PREVO S1 Compact Composite Blowgun with Metal Tip (IBG 06MTL), and Prevost Rubber Boot / Ear Clamp Cover & Coupling Protector (ECP S11720).<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 5/16" ID | Coil diameter: 2.05" | Straight length of hose on output side: 19" | Maximum air pressure: 116 PSI | Operating temperature: 5º-158ºF | Available hose lengths (fully extended): 13' (PUS 264NR) • 20' (PUS 266NR)<br/><br/>Prevost Polyurethane Spiral Hoses are available in 13', 26', and 32' lengths (fully extended), making them perfect for use in a variety of locations. Install atop work benches, mount below tables, or drop from the ceiling (in lieu of a straight hose & reel). Install anywhere that requires a clutter-free environment.<br/><br/>Hose ends feature super durable non-slip rubber grips (3-5/16" length), and 1/4" Male NPT thread. Inlet threads are fixed, and do not rotate, or swivel. Outlet threads feature 360º rotation, designed to increase user comfort by minimizing hose kinking & twisting.<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 5/16" ID | Coil diameter: 2.05" | Straight length of hose on output side: 19" | Maximum air pressure: 116 PSI | Operating temperature: 5º-158ºF | Available hose lengths (fully extended): 13' (PUS 264) • 26' (PUS 268) • 32' (PUS 2610)<br/><br/>Prevost Polyurethane Spiral Hoses are available in 13', 26', and 32' lengths (fully extended), making them perfect for use in a variety of locations. Install atop work benches, mount below tables, or drop from the ceiling (in lieu of a straight hose & reel). Install anywhere that requires<br/>a clutter-free environment.<br/><br/>Hose ends feature super durable non-slip rubber grips (3-5/16" length), and 1/4" Male NPT thread. Inlet threads are fixed, and do not rotate, or swivel. Outlet threads feature 360º rotation, designed to increase user comfort by minimizing hose kinking & twisting.<br/><br/>Shown outfitted with a Prevost Original One-Push Instant Disconnect Coupler (ISI 061201), Shown without and with a Prevost Rubber Boot / Ear Clamp Cover & Coupling Protector (ECP S11720) installed.<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 5/16" ID | Coil diameter: 2.05" | Straight length of hose on output side: 19" | Maximum air pressure: 116 PSI | Operating temperature: 5º-158ºF | Available hose lengths (fully extended): 13' (PUS 264) • 26' (PUS 268) • 32' (PUS 2610)<br/><br/>Prevost Polyurethane Spiral Hoses are available in 13', 26', and 32' lengths (fully extended), making them perfect for use in a variety of locations. Install atop work benches, mount below tables, or drop from the ceiling (in lieu of a straight hose & reel). Install anywhere that requires a clutter-free environment.<br/><br/>Hose ends feature super durable non-slip rubber grips (3-5/16" length), and 1/4" Male NPT thread. Inlet threads are fixed, and do not rotate, or swivel. Outlet threads feature 360º rotation, designed to increase user comfort by minimizing hose kinking & twisting.<br/><br/>Shown outfitted with a Prevost Original One-Push Instant Disconnect Coupler (IRC 061201), Prevost PREVO S1 Compact Composite Blowgun with Composite Tip (IBG 06PRE),  Prevost PREVO S1 Compact Composite Blowgun with Metal Tip (IBG 06MTL), and Prevost Rubber Boot / Ear Clamp Cover & Coupling Protector (ECP S11720).<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 5/16" ID | Coil diameter: 2.05" | Straight length of hose on output side: 19" | Maximum air pressure: 116 PSI | Operating temperature: 5º-158ºF | Available hose lengths (fully extended): 13' (PUS 264) • 26' (PUS 268) • 32' (PUS 2610)<br/><br/>Prevost RED Polyurethane Spiral Hoses are available in 13' and 20' lengths (fully extended), making them perfect for use in a variety of locations. Install atop work benches, mount below tables, or drop from the ceiling (in lieu of a straight hose & reel). Install anywhere that requires a clutter-free environment.<br/><br/>Hose ends feature super durable non-slip rubber grips (3-5/16" length), and 1/4" Male NPT thread. Inlet threads are fixed, and do not rotate, or swivel. Outlet threads feature 360º rotation, designed to increase user comfort by minimizing hose kinking & twisting.<br/><br/>Shown outfitted with a Prevost Original One-Push Instant Disconnect Coupler (IRC 061201), Prevost PREVO S1 Compact Composite Blowgun with Composite Tip (IBG 06PRE),  Prevost PREVO S1 Compact Composite Blowgun with Metal Tip (IBG 06MTL), and Prevost Rubber Boot / Ear Clamp Cover & Coupling Protector (ECP S11720).<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 5/16" ID | Coil diameter: 2.05" | Straight length of hose on output side: 19" | Maximum air pressure: 116 PSI | Operating temperature: 5º-158ºF | Available hose lengths (fully extended): 13' (PUS 264R) • 20' (PUS 266R)<br/><br/>Prevost BLACK Polyurethane Spiral Hoses are available in 13' and 20' lengths (fully extended), making them perfect for use in a variety of locations. Install atop work benches, mount below tables, or drop from the ceiling (in lieu of a straight hose & reel). Install anywhere that requires a clutter-free environment.<br/><br/>Hose ends feature super durable non-slip rubber grips (3-5/16" length), and 1/4" Male NPT thread. Inlet threads are fixed, and do not rotate, or swivel. Outlet threads feature 360º rotation, designed to increase user comfort by minimizing hose kinking & twisting.<br/><br/>Shown outfitted with a Prevost Original One-Push Instant Disconnect Coupler (IRC 061201), Prevost PREVO S1 Compact Composite Blowgun with Composite Tip (IBG 06PRE),  Prevost PREVO S1 Compact Composite Blowgun with Metal Tip (IBG 06MTL), and Prevost Rubber Boot / Ear Clamp Cover & Coupling Protector (ECP S11720).<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 5/16" ID | Coil diameter: 2.05" | Straight length of hose on output side: 19" | Maximum air pressure: 116 PSI | Operating temperature: 5º-158ºF | Available hose lengths (fully extended): 13' (PUS 264NR) • 20' (PUS 266NR)<br/><br/>Prevost Surflex Industrial Hoses are available in 25' and 50' lengths. Hose ends feature 1/4" Male NPT thread. Threads are fixed, and do not rotate, or swivel.<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 3/8" ID | Maximum air pressure: 300 PSI | Operating temperature: -10º-158ºF | Available hose lengths: 25' (SUR 3825) • 50' (SUR 3850)<br/><br/>Prevost Surflex Industrial Hoses are available in 25' and 50' lengths. Hose ends feature 1/4" Male NPT thread. Threads are fixed, and do not rotate, or swivel.<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 3/8" ID | Maximum air pressure: 300 PSI | Operating temperature: -10º-158ºF | Available hose lengths: 25' (SUR 3825) • 50' (SUR 3850)<br/><br/>Prevost Surflex Industrial Air Hose, outfitted with a Prevost Original Push-Button Coupler. A slip-on Prevost Rubber Ear Clamp Cover & Coupling Protector can be used with this hose.<br/><br/>Prevost Surflex Industrial Air Hose, Original Safety Coupler, S1 Compact Blowguns.<br/>Piecing together an air distribution system can be confusing. To simplify things, we've gathered up the components needed to build a basic air distribution system, and listed them here. If you are unfamiliar with the terminology used to describe various air components, here are the basics:<br/><br/>• A fitting (or plug) mounts to the inlet side of a hose or tool. Fittings plug into couplers, and lock into place.<br/><br/>• A coupler mounts to the outlet side of a compressor, hose, or distribution block. Couplers accept fittings that are plugged into them, coupling or mating them together.<br/><br/>• The term profile refers to the shape of the mating points that lock fittings into couplers. The components listed here utilize an Industrial Profile.<br/><br/>• NPT thread: National Pipe Taper thread progressively flares in diameter from small to large, ensuring an airtight seal as components are screwed together. Three size variations of NPT thread are commonly used to build compressed-air systems (1/4" | 3/8" | 1/2").<br/><br/>ECP S11720 • The Prevost Ear Clamp Cover & Coupling Protector serves double duty as a Rubber Boot! Originally designed to cover the hose clamp used to secure bulk hose onto a hose-barb coupler or fitting. Fits 3/8"-1/2" ID hose.<br/><br/>Specifications:<br/>Inlet Ø: 11/16" ID | Outlet Ø: 13/16" ID | Overall length: 4-5/16" | Fits up to 1-1/8" Ø coupler nutNSB 0614B • The Prevost Hose Coupling Cover & Protector is thinner and more flexible than the ECP S11720. Fits 3/8"-1/2" ID hose.<br/><br/>Specifications:<br/>Inlet Ø: 3/8" ID | Outlet Ø: 13/16" ID | Overall length: 4-5/16" | Fits up to 1-1/8" Ø coupler nutPrevost 1/4" Female NPT Thread Fittings (Plugs)<br/><br/>A FREE Hose Fitting is included with the purchase of a Prevost Hose. This fitting screws onto the end of the hose that air enters into via an air compressor, wall outlet, distribution block, or from another hose.<br/><br/>About NPT thread: National Pipe Taper thread progressively flares in diameter from small to large, ensuring an airtight seal as components are screwed together. Three size variations of NPT thread are commonly used to build compressed-air systems (1/4" | 3/8" | 1/2").<br/><br/>IRP 066201 | Industrial Profile | 1/4" Female NPT Thread Fitting/Plug<br/>IRP 066251 | Industrial Profile | 1/4" Male NPT Thread Fitting/Plug<br/><br/>URP 066201 | Automotive / Truflate Profile | 1/4" Female NPT Thread Fitting/Plug<br/>URP 066251 | Automotive / Truflate Profile | 1/4" Male NPT Thread Fitting/Plug<br/><br/>ERP 076201 | High Flow / European Profile | 1/4" Female NPT Thread Fitting/Plug<br/>ERP 076251 | High Flow / European Profile | 1/4" Male NPT Thread Fitting/Plug<br/><br/>Prevost 1/4" Male NPT Thread Fittings (Plugs)<br/><br/>These Prevost Male NPT Thread Fittings/Plugs screw into blowguns, air tools.<br/><br/>About NPT thread: National Pipe Taper thread progressively flares in diameter from small to large, ensuring an airtight seal as components are screwed together. Three size variations of NPT thread are commonly used to build compressed-air systems (1/4" | 3/8" | 1/2").<br/><br/>IRP 066201 | Industrial Profile | 1/4" Female NPT Thread Fitting/Plug<br/>IRP 066251 | Industrial Profile | 1/4" Male NPT Thread Fitting/Plug<br/><br/>URP 066201 | Automotive / Truflate Profile | 1/4" Female NPT Thread Fitting/Plug<br/>URP 066251 | Automotive / Truflate Profile | 1/4" Male NPT Thread Fitting/Plug<br/><br/>ERP 076201 | High Flow / European Profile | 1/4" Female NPT Thread Fitting/Plug<br/>ERP 076251 | High Flow / European Profile | 1/4" Male NPT Thread Fitting/Plug<br/><br/>
Click to enlarge image(s)




Prevost Surflex and Polyurethane Spiral Air Hose.

Prevost Surflex Industrial Rubber Air Hose.
Quality you can feel, durability you can count on. Prevost Surflex Industrial Rubber Air Hoses are available in 25' and 50' lengths. Hose ends feature 1/4" Male NPT thread. Threads are fixed, and do not rotate. Rubber hose material is soft enough to spool into a compact size, but durable enough to use daily.

Part #: 25' SUR 3825 | 50' SUR 3850
Specs: 1/4" MNPT thread | 3/8" ID | 300 PSI max


Prevost Polyurethane Spiral Air Hose.
Not your average plastic coiled hose! Prevost Polyurethane Spiral Hoses are super flexible, kink-resistant, and extremely durable. They are available in 13', 26', and 32' lengths (fully extended), making them perfect for use in a variety of locations.

Hose ends feature super durable non-slip rubber grips (3-5/16" length). Inlet threads do not rotate. Outlet threads feature 360º rotation, designed to increase user comfort, as well as minimize hose kink & twist.

Part #: 13' PUS 264 | 26' PUS 268 | 32' PUS 2610
Specs: 1/4" MNPT thread | 5/16" ID | 116 PSI max


A Free Hose Fitting is included with each hose. Plug in that hose, and get to work! A free Fitting is included with the purchase of every Prevost Air Hose. Be sure to view the detailed images above to identify which style or profile of fitting you are utilizing within your air system.


Add a Protective Boot.

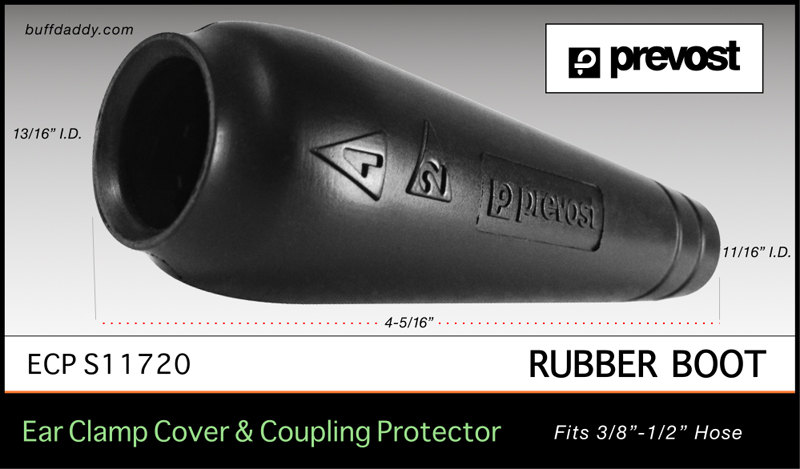

Cover metal hose ends, clamps, and coupler nuts. The Blue Non-Scratch Boot fits the Surflex Hose perfectly, but is difficult to install onto the Polyurethane Spiral Hose, as it already has a molded-on rubber grip. The Black Ear Clamp Cover & Coupling Protector features molded-in channels designed to hide away exposed hose clamps. Works perfectly with Surflex and Polyurethane Spiral Hoses.  NSB 0614  |  ECP S11720


 Prevost Hose Kits.
We offer several build-your-own hose kits. Check them out here.


 For optimum performance:
Use only precision-matched Prevost Fittings/Plugs. Purchase them here.


 We carry a wide variety of Prevost products. View them here.

Specifications & Terminology:

• A fitting or plug mounts to the inlet side of a hose
  or tool. Fittings plug into couplers, and lock into place.


• Three sizes of NPT thread are commonly used to
   build compressed-air systems (1/4" | 3/8" | 1/2").
• A coupler mounts to the outlet side of a compressor,
  hose, or distribution block. Couplers accept fittings that
  plug into them, coupling or mating them together.

NPT thread: National Pipe Taper thread progressively
  flares in diameter from small to large. This ensures an
  airtight seal as components are screwed together.

• Prevost ORIGINAL 1-Push Instant Disconnect Coupler

• Industrial Profile

Part number & SKU & thread type:
IRC061201 | IRC 061201 | 1/4" NPT female
IRC061251 | IRC 061251 | 1/4" NPT male
Specifications:
Operating Pressure: 0-174 PSI
Max Flow Rate: 32 CFM @ 100 PSI
