Prevost PROLAC One-Push Instant Disconnect Coupling: To connect: Place the fitting into the coupler, and push together. To disconnect: Press the button once. The connected fitting will release immediately..<br/><br/>To quickly determine thread size, measure the diameter of the smallest thread.<br/><br/>1/4" thread = 17/32” (14mm)<br/>3/8" thread = 21/32” (17mm)<br/>1/2" thread = 27/32” (21mm)<br/><br/>Prevost PROLAC One-Push Instant Disconnect Coupling: To connect: Place the fitting into the coupler, and push together. To disconnect: Press the button once. The connected fitting will release immediately..<br/><br/>To quickly determine thread size, measure the diameter of the smallest thread.<br/><br/>1/4" thread = 17/32” (14mm)<br/>3/8" thread = 21/32” (17mm)<br/>1/2" thread = 27/32” (21mm)<br/><br/>Prevost PROLAC One-Push Instant Disconnect Couplers. To connect: slide a fitting into the Prolac Coupler and push together until the fitting locks into place. To disconnect, press the air release button ONCE. The Prolac Coupler will release an attached fitting immediately.<br/><br/>Prevost Prolac One-Push Instant Disconnect Couplers are available in a trio of thread sizes (1/4", 3/8", and 1/2"). The couplers shown in this photo feature 1/4" NPT thread, which are capable of flowing up to 34 cubic feet per minute of air. This equates to 254 gallons per minute!<br/><br/>Specifications-<br/>1/4" NPT Thread | Truflate/Automotive Profile<br/><br/>URC 061201<br/>Prevost Prolac 1-Push Instant Disconnect Coupler | Female Thread | Flow: 34 CFM / 254 GPM<br/><br/>URC 061251<br/>Prevost Prolac 1-Push Instant Disconnect Coupler | Male Thread | Flow: 34 CFM / 254 GPM<br/><br/>URP 066201<br/>Air Fitting aka Plug | Female Thread<br/><br/>URP 066251<br/>Air Fitting aka Plug | Male Thread<br/><br/>URP 066201 | Truflate/Automotive Profile | 1/4" Female NPT Thread Fitting/Plug<br/><br/>URP 066251 | Truflate/Automotive Profile | 1/4" Male NPT Thread Fitting/Plug<br/><br/>About NPT thread: National Pipe Taper thread progressively flares in diameter from small to large, ensuring an airtight seal as components are screwed together. Three size variations of NPT thread are commonly used to build compressed-air systems (1/4" | 3/8" | 1/2").<br/><br/>UBG 06PRE • Prevost PREVO S1 Compact Blow Gun with Composite Nozzle<br/><br/>Fits 1/4" NPT Thread Couplers | Truflate/Automotive Profile<br/><br/>Specifications-<br/>Maximum Air Pressure: 174 PSI<br/>Noise Level: 85 dBA  (no distance to microphone given)<br/>Blowing Force (at 87 PSI): 10 Ozf<br/>Air Consumption (at 87 PS): 8.2 CFM<br/>Dynamic Pressure (at 87 PSI | 4" distance): 36 PSI<br/><br/>UBG 06MTL • Prevost PREVO S1 Compact Blow Gun with Metal Nozzle<br/><br/>Fits 1/4" NPT Thread Couplers | Truflate/Automotive Profile<br/><br/>Specifications-<br/>Maximum Air Pressure: 174 PSI<br/>Noise Level: 89 dBA  (no distance to microphone given)<br/>Blowing Force (at 87 PSI): 14 Ozf<br/>Air Consumption (at 87 PS): 11.8 CFM<br/>Dynamic Pressure (at 87 PSI | 4" distance): 32 PSI<br/><br/>Prevost Surflex Industrial Air Hose, Prolac 1-Push Instant Disconnect Coupler.<br/><br/>Piecing together an air distribution system can be confusing. To simplify things, we've gathered up the components needed to build a basic air distribution system, and listed them here. If you are unfamiliar with the terminology used to describe various air components, here are the basics:<br/><br/>• A fitting (or plug) mounts to the inlet side of a hose or tool. Fittings plug into couplers, and lock into place.<br/><br/>• A coupler mounts to the outlet side of a compressor, hose, or distribution block. Couplers accept fittings that are plugged into them, coupling or mating them together.<br/><br/>• The term profile refers to the shape of the mating points that lock fittings into couplers. The components listed here utilize a Truflate aka Automotive Profile.<br/><br/>• NPT thread: National Pipe Taper thread progressively flares in diameter from small to large, ensuring an airtight seal as components are screwed together. Three size variations of NPT thread are commonly used to build compressed-air systems (1/4" | 3/8" | 1/2").<br/><br/>1-Push Instant Disconnect Coupler (URC 061201 / Truflate aka Automotive Profile), and Prevost Rubber Boot / Ear Clamp Cover & Coupling Protector (ECP S11720).<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 5/16" ID | Coil diameter: 2.05" | Straight length of hose on output side: 19" | Maximum air pressure: 116 PSI | Operating temperature: 5º-158ºF | Available hose lengths (fully extended): 13' (PUS 264) • 26' (PUS 268) • 32' (PUS 2610)<br/><br/>
Click to enlarge image(s)

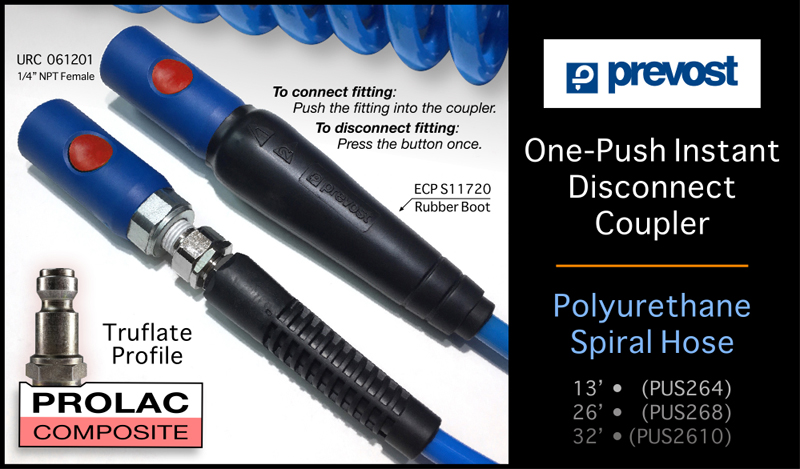

Prevost PROLAC Coupler - Truflate/Automotive Profile.
Click the images to view detailed shots & information.

Prevost® PROLAC One-Push Instant Disconnect Couplers feature smooth & grippy bodies. Installing a fitting into the coupler is direct, and precise.

"Click"... and "Pop!" These are the simple sounds that Prolac Couplers make as fittings are pressed into place, and then decoupled with one press of the air release button.

To connect: Press the fitting into the coupler until it locks into place.
To release: Press the disconnect button once.

For optimum performance:
Use only precision-matched Prevost Fittings/Plugs.

  Add an S1 Compact Blowgun. Composite or metal tip.

 Also available within a kit.

 We carry a wide variety of Prevost products. View them here.

 Also available in   Industrial  and   High Flow profiles.
Specifications & Terminology:

• A fitting or plug mounts to the inlet side of a hose
  or tool. Fittings plug into couplers, and lock into place.


• Three sizes of NPT thread are commonly used to
   build compressed-air systems (1/4" | 3/8" | 1/2").
• A coupler mounts to the outlet side of a compressor,
  hose, or distribution block. Couplers accept fittings that
  plug into them, coupling or mating them together.

NPT thread: National Pipe Taper thread progressively
  flares in diameter from small to large. This ensures an
  airtight seal as components are screwed together.

• Prevost PROLAC 1-Push Instant Disconnect Coupler

• Truflate / Automotive Profile

Part number & SKU & thread type:
URC061201 | URC 061201 | 1/4" NPT female
URC061251 | URC 061251 | 1/4" NPT male
Specifications:
Operating Pressure: 0-174 PSI
Max Flow Rate: 34 CFM @ 100 PSI
